TECHNICAL SPECIFICATIONS:

1. GENERAL INFORMATION

• Package dimension: 62cm W x 43cm D x 78.5cm H.

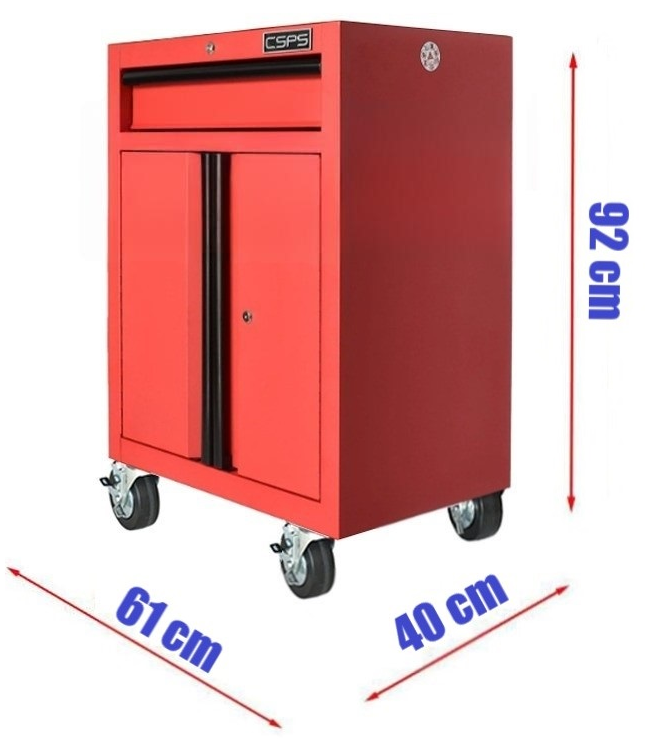

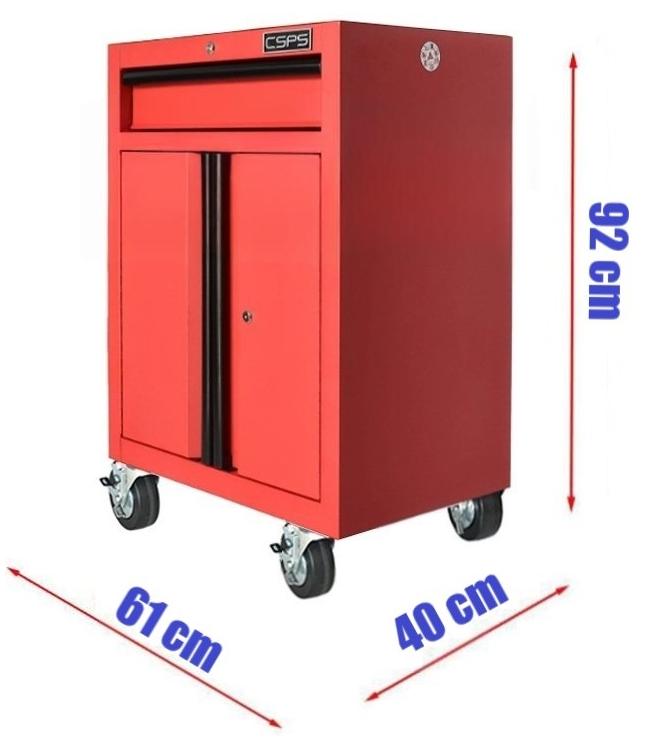

• Product dimension: 61cm W x 40cm D x 92cm H  (Including caster height)

• Net weight: 29.8kg (Including caster)

• Warranty: 2 years

2. CAPACITY

• Overall capacity: 294 kg

• Drawer:

  • Dimension: 61cm W x 40cm D x 76cm H. Quantity: 01

  • 3-section ball bearing slides

  • Load capacity: 45 kg per drawer

  • Usage cycle: 40,000 times

3. OTHERS

• Coating:

  • Color: Matt Red

  • Powder coating technology

  • Coating durability: 10 years

• Casters:

  • 2 rigid casters & 2 swivel casters (with brakes)

• Lock:

  • Drawer lock: 01

  • Minimum lock release force: 45 kg

4. STANDARDS

• Appearance: 16 CFR 1500.48/1500.49 (Scope widened): sharp point test
  16 CFR 1303: lead-containing paint test

• Coating: ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test
  ASTM D3363 (mod.): hardness test
  ASTM D2794: impact test
  ASTM D4752: solvent resistance rub test
  ASTM D3359: cross-cut tape test

• Steel: ASTM A1008: standard specification for steel

• Function: ANSI/BIFMA X 5.9: Storage unit test – static load loading; dynamic loading; durability testing

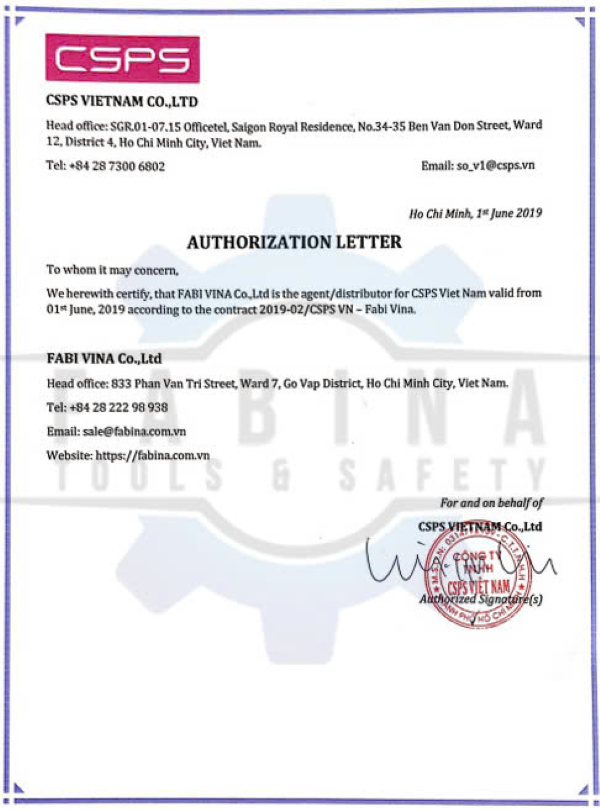

Authorized Distributor Certificate:

FABINA is looking for distributors nationwide for CSPS tool cabinets and workbenches.

Founded in 1993, CSPS is one of the world’s leading OEM companies in the field of tool cabinet manufacturing. Currently, CSPS products are available in the markets of the United States, Canada, Australia, and Vietnam.
