Specifications

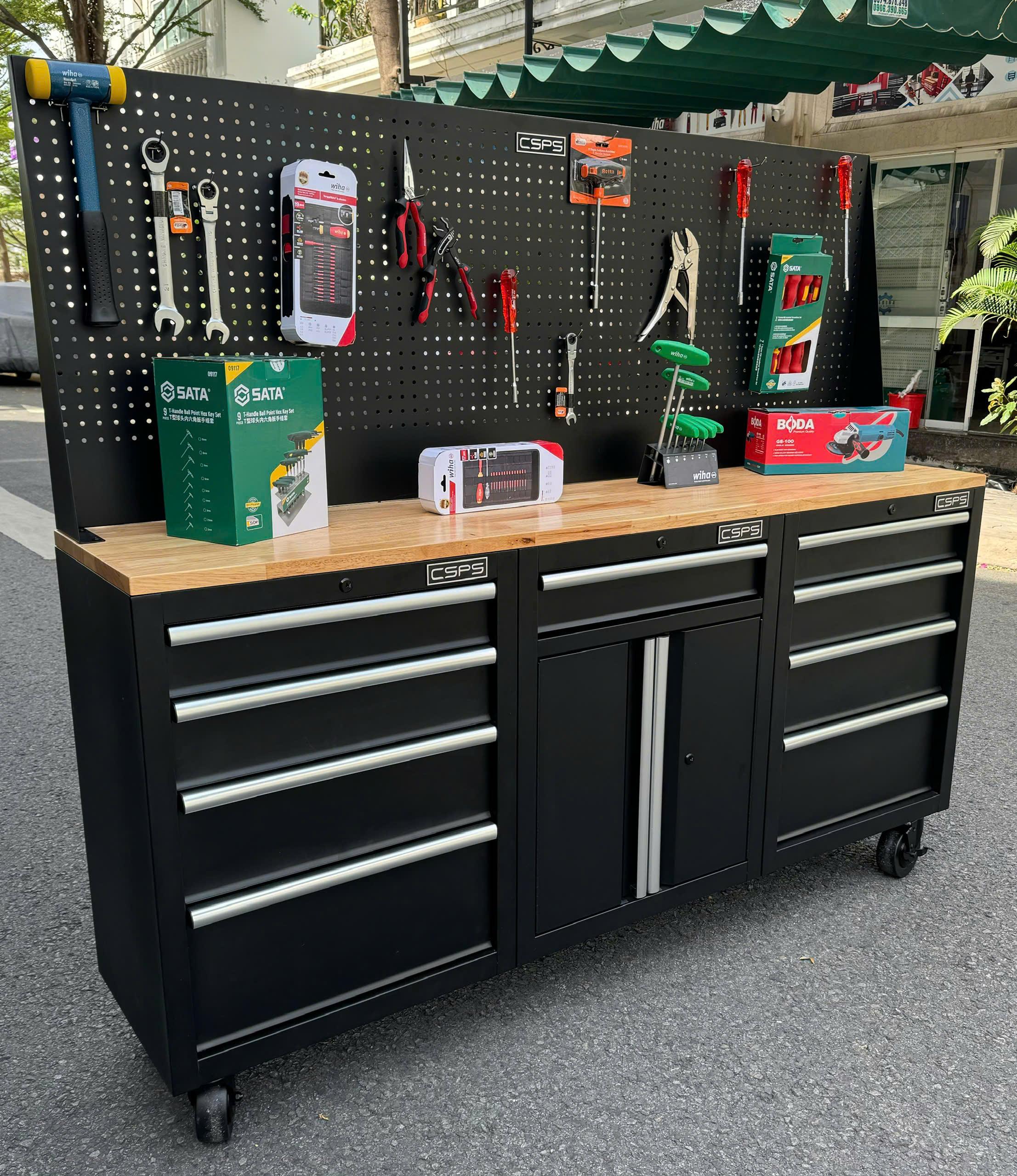

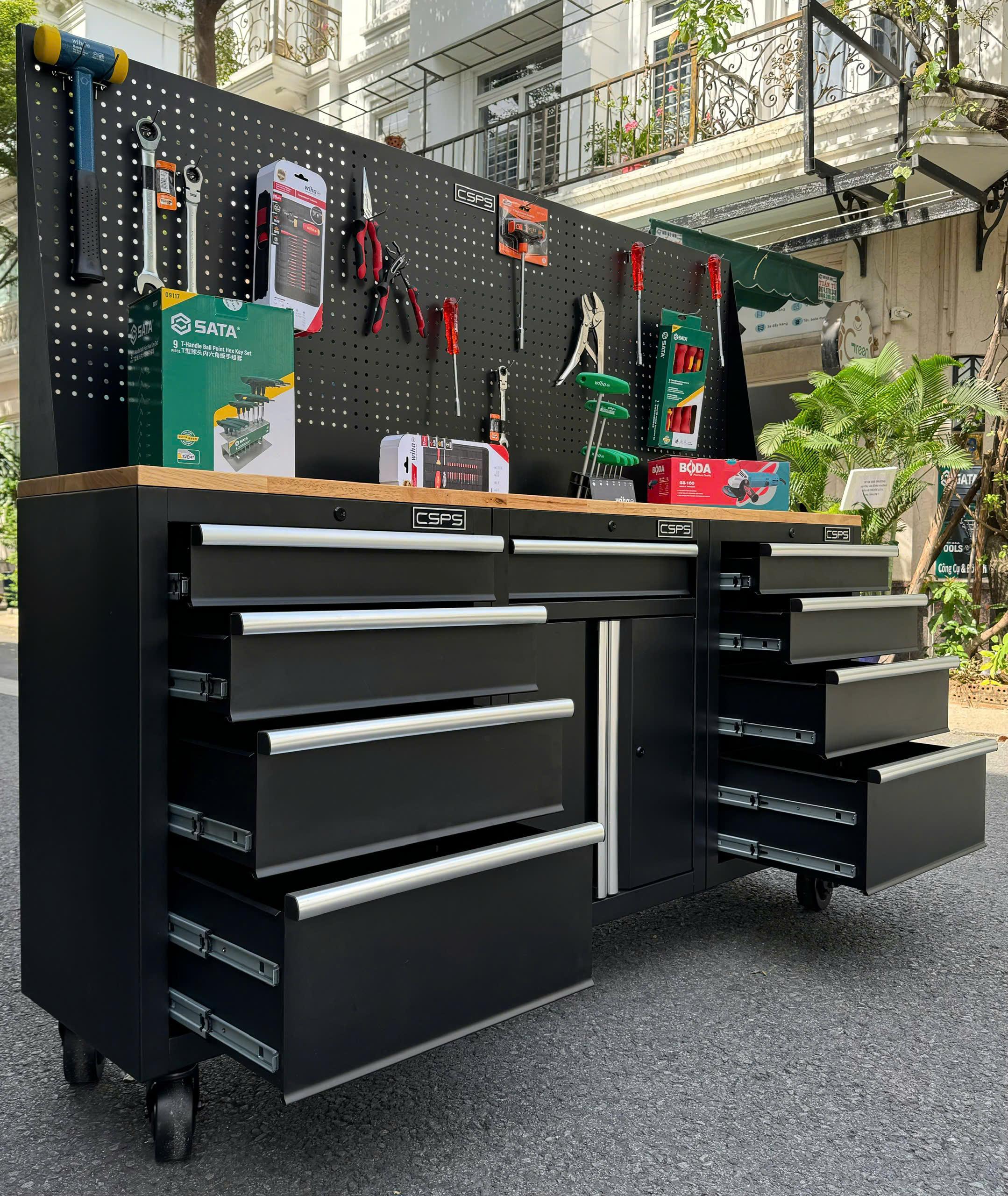

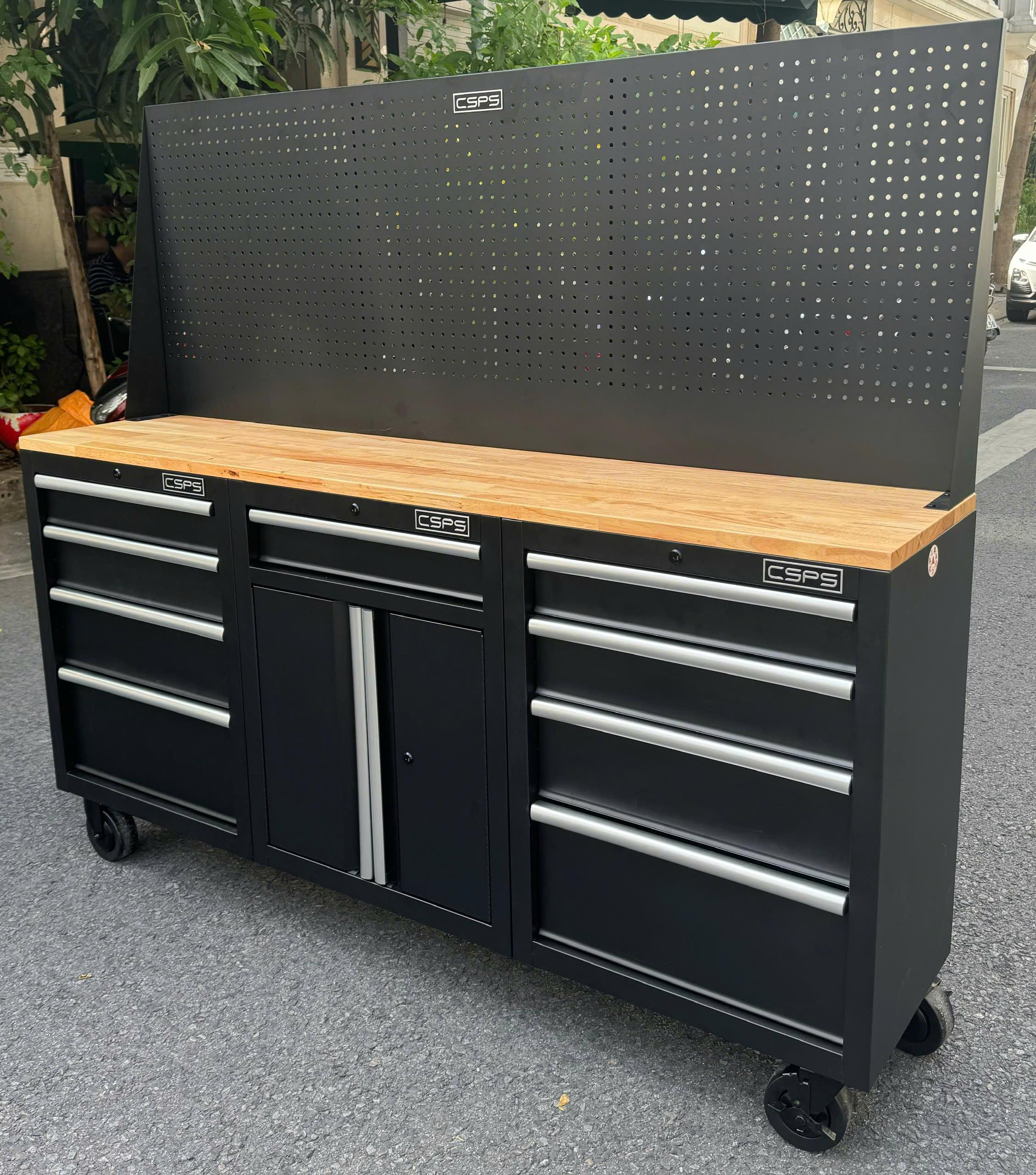

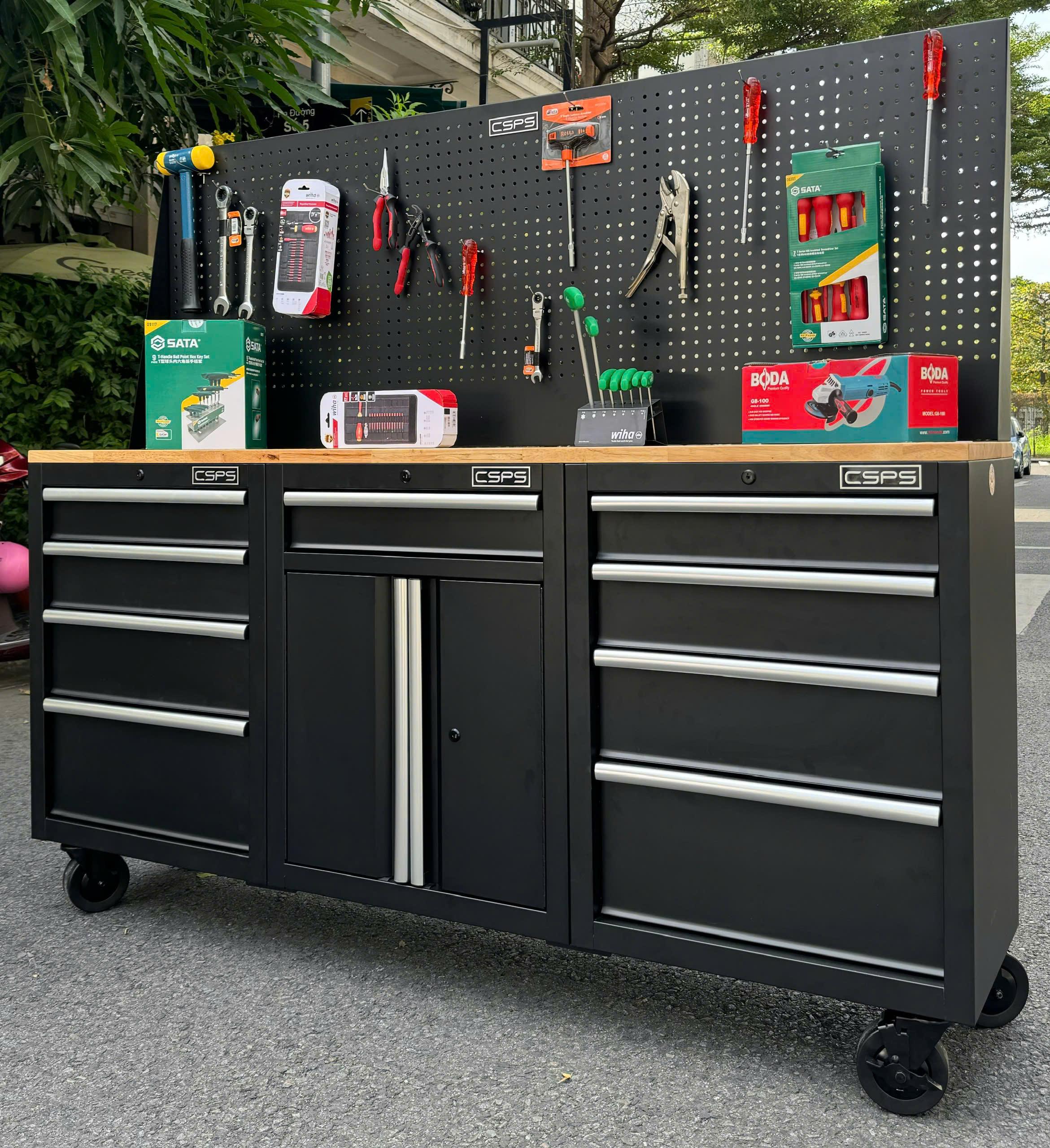

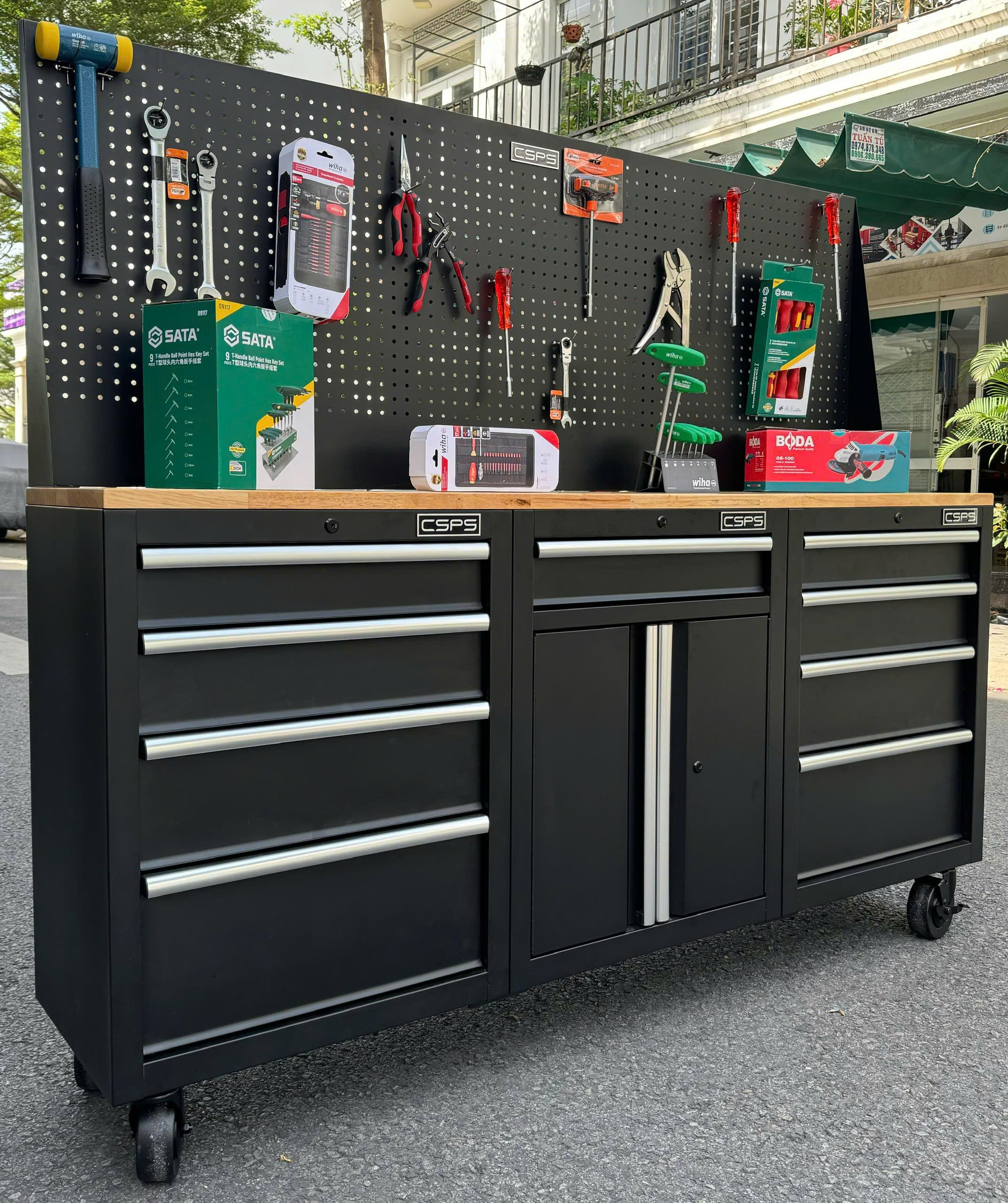

Set of 3 CSPS 183cm black tool cabinets with wooden panel and mesh wall - 09 drawers (white handle)
1 GENERAL SPECIFICATIONS

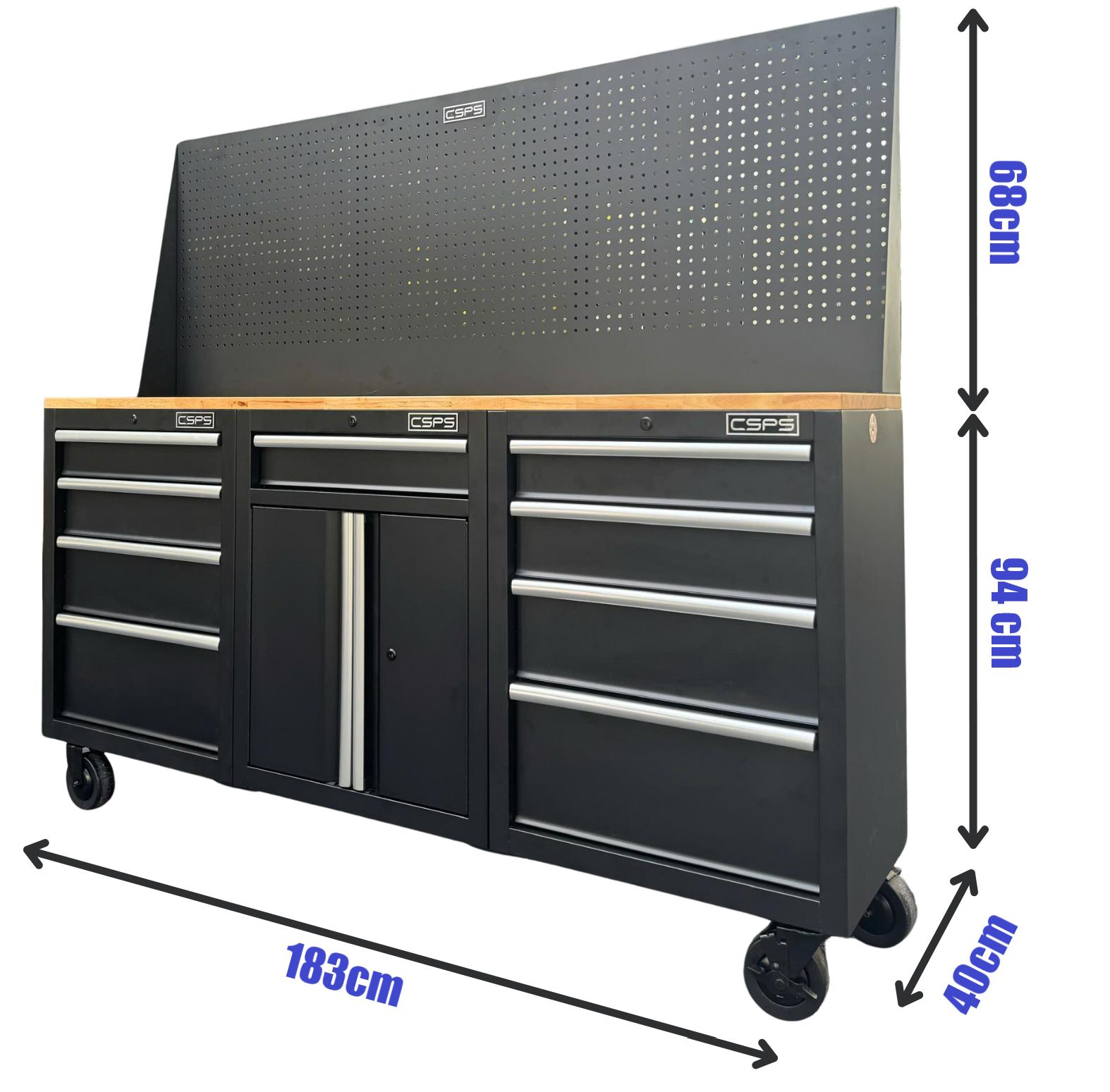

Product size:
Door base cabinet: 61cm W x 40cm D x 92cm H. Quantity/Quantity: 02.
Door base cabinet: 61cm W × 40cm D × 92 cm H. Quantity/Quantity: 01.
Woodtop: 183cm W x 40cm D x 2.5 cm H. Quantity/Quantity: 01.
Pegboards: 181cm W x 15cm D x 68cm H. Quantity/Quantity: 01.
Product weight: Door base cabinet: 30 kg.
01 Wood top: 13 kg.
Pegboards: 9.2 kg.
2 CAPACITY
Total load: Two Door base cabinet/per: 450kg/cabinet.
Wood top: 136 kg.
Drawer: 61cm W x 40cm D x 76cm H. Quantity: 09.
Using 03-layer ball bearing slides.
Capacity: 45 kg/drawer.
Usage cycle: 40,000 times.
Drawer: Quantity: 02.
Capacity: 45 kg/partition.
3 OTHERS
Lock: Drawer lock: 03. Locking force: minimum 45 kgf.
Locker lock: 03.
Coating: Color: matte black.
Powder coating technology.
Coating durability: 10 years.
Wheels: 02 swivel wheels (non-lockable) & 02 swivel wheels (with lock).
Wheel load capacity: 1000 kg
Table top: Quantity: 01.
Dimension: 183cm W x 40cm D x 2.5 cm H.
Weight: 13 kg.
4 STANDARDS
Appearance: 16 CFR 1500.48/1500.49 (Scope widened): sharp point test.
16 CFR 1303: lead-containing paint test.
Coating: ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test.
ASTM D3363 (mod.): hardness test.
ASTM D2794: impact test.
ASTM D4752: Solvent resistance rub test.
ASTM D3359: Cross-cut tape test.
Steel: ASTM A1008: standard specification for steel.
Function: ANSI/BIFMA X 5.9: Storage unit test – Static load loading; dynamic loading; durability testing.
Authorized Distributor Certificate:
